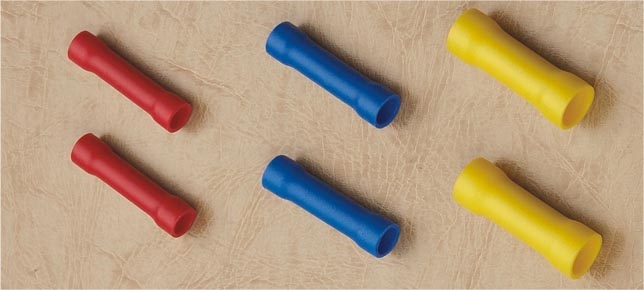

INSULATED BUTT CONNECTORS

Inquire

Product Description

ITEM.NO.	CLNLE SQ		DIMENSION			IMAX	INSULATION COLOR
ITEM.NO.	A.W.G	mm²	I(mm)	D Ф(mm)	L(mm)	IMAX	INSULATION COLOR
BV1.25	22～16	0.5～1.5	15.0	1.7	26.0	19A	Red
BV2	16～14	1.5～2.5	15.0	2.3	26.0	27A	blue
BV5.5	12～10	4～6	15.0	3.4	26.0	48A	yellow
BV8	#8	6～10	21.0	4.5	32.0	62A	red
BV14	#6	10～16	26.0	5.8	42.0	88A	blue
BV22	#4	16～25	29.0	7.7	50.0	115A	yellow
BV38	#2	35～50	32.0	9.4	55.0	160A	red

ITEM.NO.	CLNLE SQ		DIMENSION			IMAX	INSULATION COLOR
ITEM.NO.	A.W.G	mm²	I(mm)	D Ф(mm)	L(mm)	IMAX	INSULATION COLOR
PVT1.25	22～16	0.5～1.5	8.0	1.7	16.0	19A	Red
PVT2	16～14	1.5～2.5	8.0	2.3	16.0	27A	blue
PVT5.5	12～10	4～6	8.5	3.4	20.5	48A	yellow
